Dichroic coatings ITO

Transparent conductive coatings are very often used in electro-magnetic shielding, electrical heating, and cutting edge display applications. We use the coating material indium-tin oxide (ITO) which provides for excellent durable coatings.

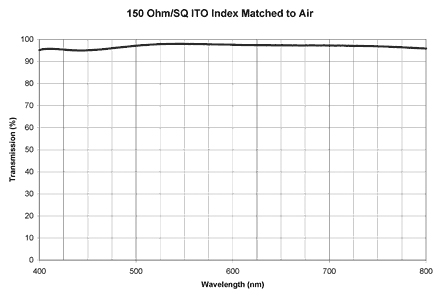

Index Matched ITO in Air Index matched ITO provides a combination of low resistivity and extra transmission in the visible spectrum (400-700 nm) with an average transmittance of 94%

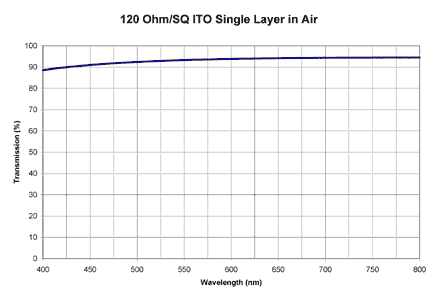

120 ohms/SQ ITO Single layer in Air This single layer ITO coating provides an average transmittance of 90% over the visible spectrum (400-700 nm) with resistivity of 120 ohms per square. Standard tolerance for sheet resistivity is +/- 20%. Higher or lower resistivities are available upon request

Often, ITO coatings are used in contact with materials other than air. We often design and produce ITO coatings designed specifically to be used next to materials such as liquid crystal, cements, index oils, and various other materials. ITO coatings that have been under coated or overcoated to be index matched to a particular material, such as liquid crystal, can have very low reflectances.

140 ohms/SQ ITO index matched to 1.52 (visible)
This index matched ITO provides very high transmission average of 97% from 425-675 nm, with resistivity 140 ohms/SQ. This coating is index matched to 1.52. Higher or lower resistivities and matching custom indices and multilayer structures are available on request.

300 ohms/SQ ITO Index Matched to 1.52 (Near IR)
This index matched ITO provides very high transmission average of 97% from 1425-1650 nm, with resistivity 300 ohms/SQ. This coating is index matched to 1.52. Higher or lower resistivities and matching custom indices and multilayer structures are available on request.

One determining factor as to how low a reflectance can be achieved is the sheet resistively specification. Thicker ITO layers yield lower sheet resistivities but also result in higher reflectances. Sheet resistivities as low as 5 to 10 ohms/SQ and as high as a few thousand ohms/SQ can be achieved. One common thickness of ITO, 100 angstroms, yields about 450 ohms/SQ.

We have a great deal of experience coating ITO and index matched ITO (IMITO) and we would be happy to review any particular requirements you may have. We would also be happy to be of assistance in exploring what specifications can be achieved using ITO.
