Hot and Cold Mirrors are a specific type of dichroic filter used to remove unwanted energy from the light emitted by a source. A common example is the use of hot mirrors in very bright spotlights used in entertainment applications. Heat control filters are able to separate the unwanted infrared, perceived as heat by people, from the visible light desired.
Hot Mirror filters transmit the shorter wavelengths and reflect the infrared energy. Hot mirrors are most commonly used at normal incidence, but custom angles of incidence can be designed to specification
Cold mirror filters reflect the shorter wavelengths and transmit heat (infrared). Cold mirrors are commonly used at 0 & 45 degrees.
|

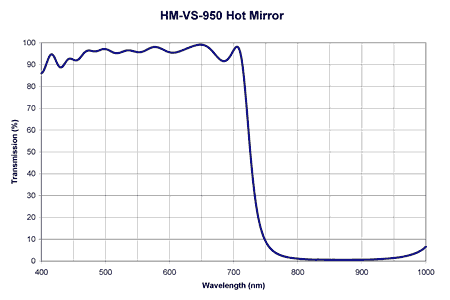

Our most cost effective Hot Mirror
(HM-VS-950) Applications: Fiber Optic Illuminators, Projection, IR blocking. |
|

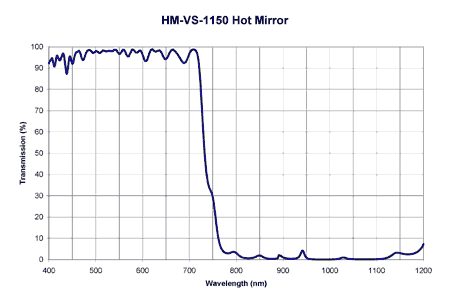

| Our Standard Hot Mirror (HM-VS-1150)
is our most popular. It has great transmission in the visible spectrum and reflects the IR energy out past 1150nm. The average transmission is more than 93% from 425 to 675 nm, and the average reflectance is more than 95% from 750 to 1150 nm at normal incidence. Custom angles of incidence can be designed to specification.
Applications: Fiber Optic Illuminators, Projection, IR blocking. |
|

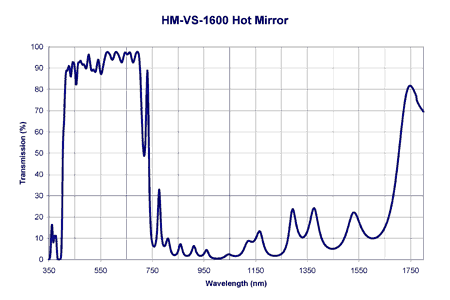

| Extended Hot Mirror
(HH-VIS-1600) This filter was designed for applications that require extended IR blocking. The filter reflects IR energy out past 1600nm and maintains good visible transmission. The average transmission is greater than 85% from 425 to 675 nm. Average reflectance is more than 90% from 750 to 1150 nm & 80% from 1150-1600 nm at normal incidence. Custom angles of incidence can be designed to specification. Applications: Fiber Optic Illuminators, Projection, IR blocking. |
|

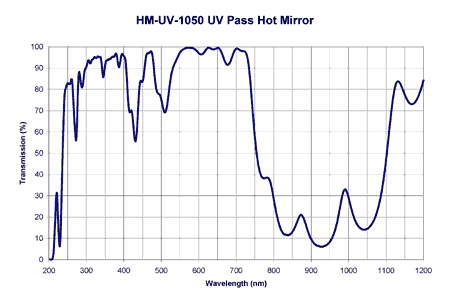

| UV pass Hot Mirror
(HM-UV-1050) UV Hot Mirror filters are specially designed to transmit more than 80% on average from 245-460 nm and reflect more than 70% in average from 800-1050nm at normal incidence. Custom angles of incidence can be designed to specification. This Hot Applications: This Mirror works well with our UV Transmitting filters. |
|

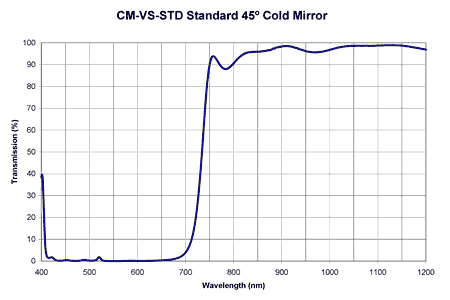

| 45 degree Cold Mirror
(CM-VS-STD) Our cold mirror filter is designed to operate at 45 degrees. It reflects the visible spectrum and transmits the heat (infrared). The average reflectance is greater than 95% from 425 to 650nm. Transmission is more than 85% average from 800 to 1200 nm. These filters are commonly coated for normal incidence applications as well. Custom angles of incidence can be designed to specification. Applications: Fiber Optic and Projection |
|

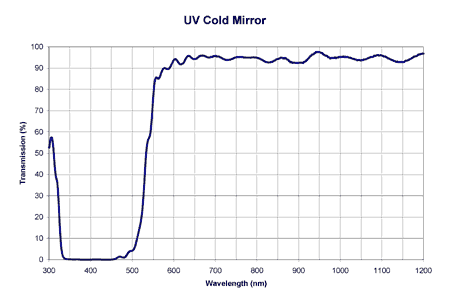

| UV Cold Mirror This cold mirror is specially designed to reflect more than 95% average of ultra-violet rays from 350-450 nm and transmit more than 90% average 550 -1200nm at 45 degrees angle of incidence. Custom angles of incidence can be designed to specification. Applications: UV Curing |
|
