HD Dichroic™ / ZC&R Blacklite™ / HD*VR 3-D™

HD ZC&R Blacklite™

Fixtures



HD 1000 SF HQI BlackEagle™


FIXTURE: Cast aluminum body. Baked black & ivory powder coat.
WEIGHT: Head 35 pounds.  Ballast 60 pounds.
DIMENSIONS: 19" diameter x 16" deep
LAMP: Linear 1000 W HQI Metal Halide.
BEAM ANGLE: 60º Spot/flood
MAX. THROW: 300 Feet
FILTER: 17.5" diameter x 3mm HD UV pass dichroic Blacklite™ filter @ 365nm
POWER: 110/120V, 60Hz @ 13.2 amps. 220/240V, 50Hz**
REFLECTOR: Polished 99.5% pure aluminum
ACCESS:Latched hinged upper case

FEATURES: Weatherized head / Lamp included / Safety cable / Ears for color scroller, barndoors or shutters





HD ZC&R 400 F MH BlackFlood™



FIXTURE: Pressed aluminum body. Baked black powder coat
WEIGHT: 28 pounds
DIMENSIONS: 18.0"L x 12.0"W x 6.0"D
LAMP: Linear 400W Metal Halide (Philips HPA 400 S)

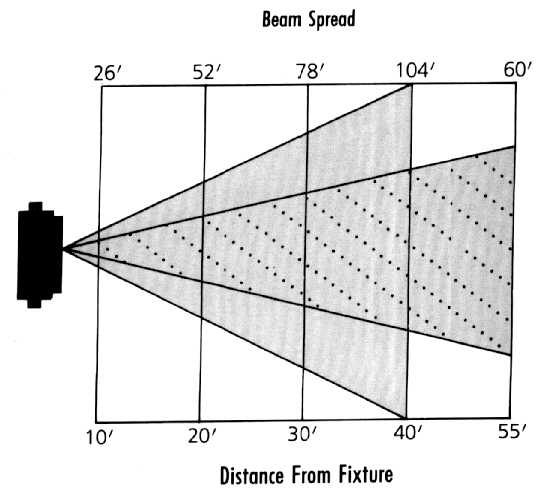

BEAM ANGLE: 105º x 60º Flood - Option 60º Splood
MAX. THROW: Flood - 40 Feet Splood - 55 Feet  (Additional spread lenses can be used in 10" x 10" mount)
FILTER: 8" (203mm) Optical filter glass, tempered @ 365nm
POWER: 110/120V, 60Hz @ 4.5 amps. 220/240V, 50Hz**
FEATURES: Internal safety cutoff switch
Solid aluminum yoke / Lamp is included
Safety cable / 10" x 10" mount for color scroller, barn doors, louvers  or shutters
Ballast & head can be separated for remote use

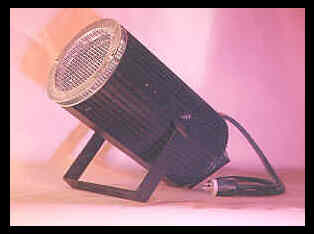

HD ZC&R 350 S MV MiniBlack™



FIXTURE: Extruded aluminum body. Baked black powder coat
WEIGHT: 10 pounds
DIMENSIONS: 8.5" x 17.0"
LAMP: 350 W Mercury Vapor. Long lamp life.

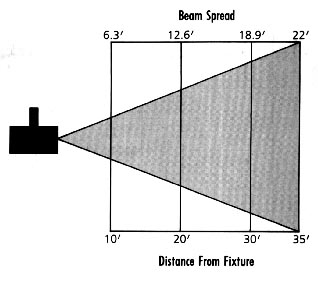

BEAM ANGLE: 35º
MAX. THROW: 35 Feet
FILTER: Optical filter glass, tempered @ 365nm
POWER: 110/120V, 60Hz @ 4 amps. 220/240V, 50Hz**
FEATURES: Internal safety cutoff switch / Solid aluminum yoke /  Lamp is included / No separate ballast

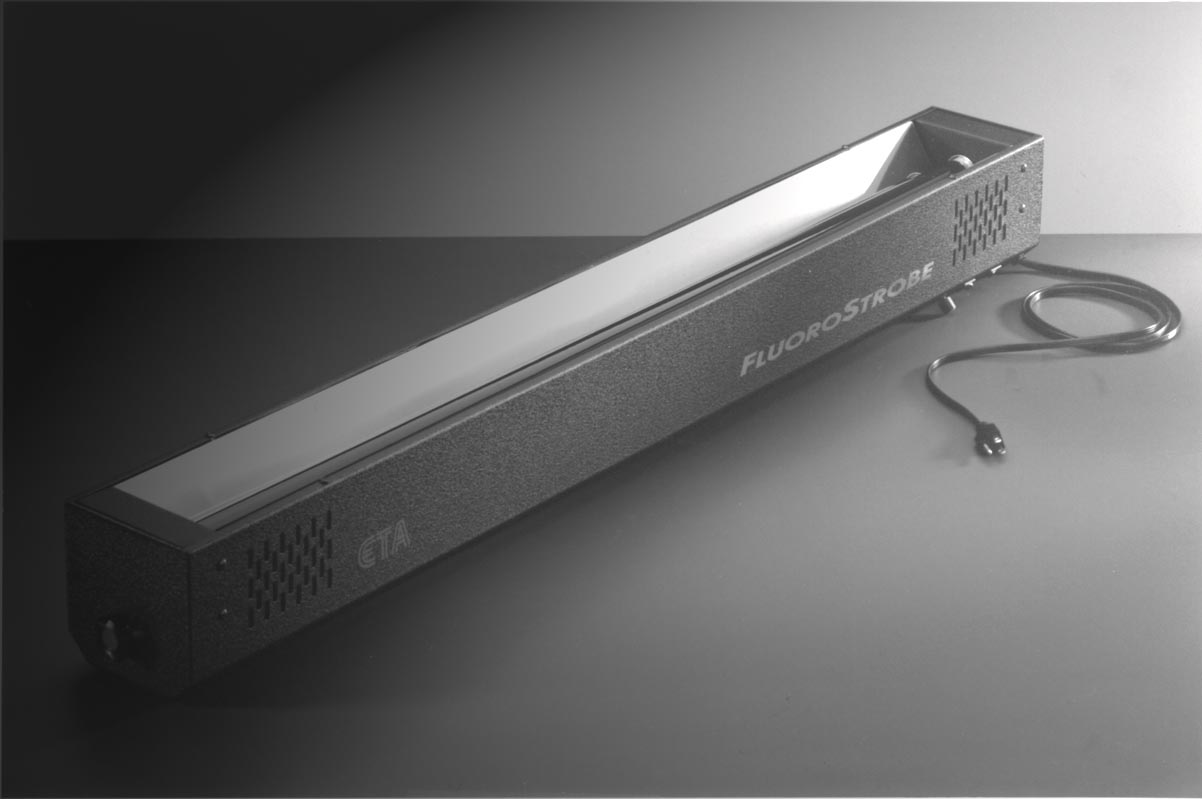

The HD FluorostrobeTM is a high intensity blacklight fluorescent strobe.


High output fluorescent strobe
Variable speed at a Steady state and Dimmable

50% more light - up to 80 lamp watts  * Up to 10,000 hours lamp life * Throw of over 25 feet
Ceiling or wall mountable * Vertical or horizontal
Comes complete with one (1) lamp and power cord
